A base class for building a option container such as a tab bar or combo box. More...

#include <WSContainer.h>

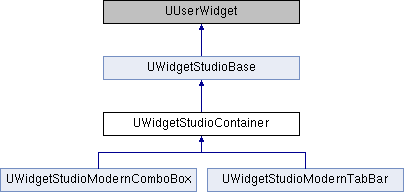

Inheritance diagram for UWidgetStudioContainer:

Public Member Functions
int32	GetCurrentIndex () const
	Return the index of the current selected button.

int32	GetOptionCount () const
	Returns the number of options.

TArray< FButtonOptions >	GetOptions () const
	Returns the options.

FButtonOptions	GetOptionAtIndex (int32 Index)
	Return the option at the given index.

FButtonOptions	GetCurrentOption () const
	Get the options of the current button.

int32	GetOptionIndexViaText (FText InText)
	Returns the Option Index based on given text. More...

void	IncrementCurrentIndex (bool bBroadcast=true)
	Increases the current index by 1. More...

void	DecrementCurrentIndex (bool bBroadcast=true)
	Decreases the current index by 1. More...

void	ClearCurrentIndex (bool bBroadcast=true)
	Sets the current index to -1. More...

virtual void	SetOptions (TArray< FButtonOptions > NewOptions)
	Override the options in this container. More...

virtual void	SetCurrentIndex (int32 Index, bool bBroadcast=true)
	Set the current index. More...

void	AddOption (FButtonOptions NewOption)
	Add an option to the container. More...

virtual void	ClearOptions ()
	Clear all options from the container. More...

bool	SetCurrentIndexViaOptionText (FText InText, bool bBroadcast=true)
	Finds and sets the current index based on option text. More...

Public Member Functions inherited from UWidgetStudioBase
FVector2D	GetDimensions () const
	Returns the current X and Y dimensions of the Widget. More...

int32	GetBorderRadius () const
	Returns the current border radius of the Widget. More...

void	ForceStyleUpdate ()
	Refresh the dynamic styling of the Widget Studio widget.

void	SetSizeModifier (ESizeModifier InSizeModifier)
	Set the size modifier of the Widget Studio widget.

Public Attributes
FWSContainerDelegate	OnCurrentIndexChanged
	Called when the current index has been changed.

FWSContainerHoverDelegate	OnIndividualHoverStateChanged
	Called when an individual widget contained in the container's hover state has changed.

Public Attributes inherited from UWidgetStudioBase
FWSBaseHoverStateDelegate	OnHoverStateChanged
	Called when the hover state has been changed.

bool	bCanOverrideDimensions = true
	Used to enable or disable dimension override's.

bool	bCanOverrideBorderRadius = true
	Used to enable or disable dimension override's.

FVector2D	MinimumDimensions = FVector2D(50, 7)
	The minimum dimensions of the widget. More...

bool	bDisablePainting = false
	Used for debugging. More...

float	AnimationTime = 7
	The animation interpolation speed. More...

ESizeModifier	SizeModifier = ESizeModifier::Regular
	Quickly modify the overall size of the widget. More...

FVector2D	OverrideDimensions = FVector2D(0, 0)
	Manually adjust the X and Y dimensions of the widget. More...

int32	OverrideBorderRadius = -1
	Manually adjust the border radius of the widget. More...

Protected Member Functions
virtual void	ConstructOption (FButtonOptions Option)

virtual void	SynchronizeProperties () override

virtual void	IndividualHoverStateChanged (UWidgetStudioBase *CallingWidget, const bool bIsHovering)

Protected Member Functions inherited from UWidgetStudioBase
virtual void	InitializeStyling ()

virtual void	UpdateStyling ()

virtual void	NativeOnMouseEnter (const FGeometry &InGeometry, const FPointerEvent &InMouseEvent) override

virtual void	NativeOnMouseLeave (const FPointerEvent &InMouseEvent) override

virtual void	NativeOnMouseCaptureLost (const FCaptureLostEvent &CaptureLostEvent) override

Protected Attributes
int32	CurrentIndex = -1
	The current option selected. More...

TArray< FButtonOptions >	Options
	The options that will be available.

Detailed Description

A base class for building a option container such as a tab bar or combo box.

Member Function Documentation

◆ AddOption()

void UWidgetStudioContainer::AddOption ( FButtonOptions NewOption )

Add an option to the container.

Parameters

NewOption The option to add to the container.

◆ ClearCurrentIndex()

void UWidgetStudioContainer::ClearCurrentIndex ( bool bBroadcast = true )

Sets the current index to -1.

No option will be labeled as selected.

Parameters

bBroadcast When true, OnCurrentIndexChanged will be broadcasted.

◆ ClearOptions()

void UWidgetStudioContainer::ClearOptions ( )

virtual

Clear all options from the container.

Reimplemented in UWidgetStudioModernTabBar.

◆ DecrementCurrentIndex()

void UWidgetStudioContainer::DecrementCurrentIndex ( bool bBroadcast = true )

Decreases the current index by 1.

Can only go as low as index 0.

Parameters

bBroadcast When true, OnCurrentIndexChanged will be broadcasted.

◆ GetOptionIndexViaText()

int32 UWidgetStudioContainer::GetOptionIndexViaText ( FText InText )

Returns the Option Index based on given text.

Parameters

InText The text to find the option by.

◆ IncrementCurrentIndex()

void UWidgetStudioContainer::IncrementCurrentIndex ( bool bBroadcast = true )

Increases the current index by 1.

Parameters

bBroadcast When true, OnCurrentIndexChanged will be broadcasted.

◆ SetCurrentIndex()

void UWidgetStudioContainer::SetCurrentIndex	(	int32	Index,
		bool	bBroadcast = `true`
	)

virtual

Set the current index.

Parameters

Index	The index to set the current index to.
bBroadcast	When true, OnCurrentIndexChanged will be broadcasted.

Reimplemented in UWidgetStudioModernComboBox, and UWidgetStudioModernTabBar.

◆ SetCurrentIndexViaOptionText()

bool UWidgetStudioContainer::SetCurrentIndexViaOptionText	(	FText	InText,
		bool	bBroadcast = `true`
	)

Finds and sets the current index based on option text.

Returns false if it could not find the option.

Parameters

InText	The option text to set the current index to.
bBroadcast	When true, OnCurrentIndexChanged will be broadcasted.

◆ SetOptions()

void UWidgetStudioContainer::SetOptions ( TArray< FButtonOptions > NewOptions )

virtual

Override the options in this container.

Parameters

NewOptions The array of button options to use in the container.

Member Data Documentation

◆ CurrentIndex

int32 UWidgetStudioContainer::CurrentIndex = -1

protected

The current option selected.

A value of -1 will indicate that no option is selected.

The documentation for this class was generated from the following files:

src/WidgetStudio/Source/WidgetStudioRuntime/Public/Widgets/WSContainer.h
src/WidgetStudio/Source/WidgetStudioRuntime/Private/Widgets/WSContainer.cpp
